QUICK DISCONNECT HP CABLES

HP Core: Choose for best flexibility, lower backlash and higher efficiency.
Polymer coated 1 x 7 wire rope.

Solid Core: .075 solid stainless steel core

• Light Duty: Exposed Solid Core or 1 x 7 HP Core
• Heavy Duty: 3 & 4 Series threaded end rods
• Applications: throttle, choke, engine stop, fuel shut-off, latches
• T-Handle locks in either direction
• Quick Disconnect Positive Lock Head: See verniers page 12
• Replacement T-Handle: 49005-1094 with 30073 set screw

Temperature Range:

–65 to +225°F / –54 to +107°C Std.
–65 to +300°F / –54 to +149°C HEFT 2

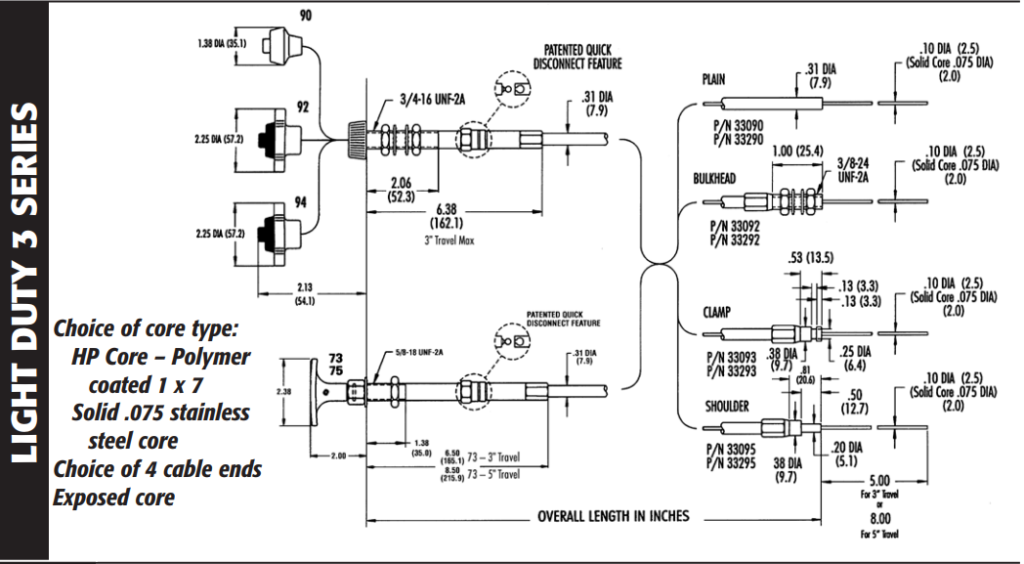

LIGHT DUTY 3 SERIES
